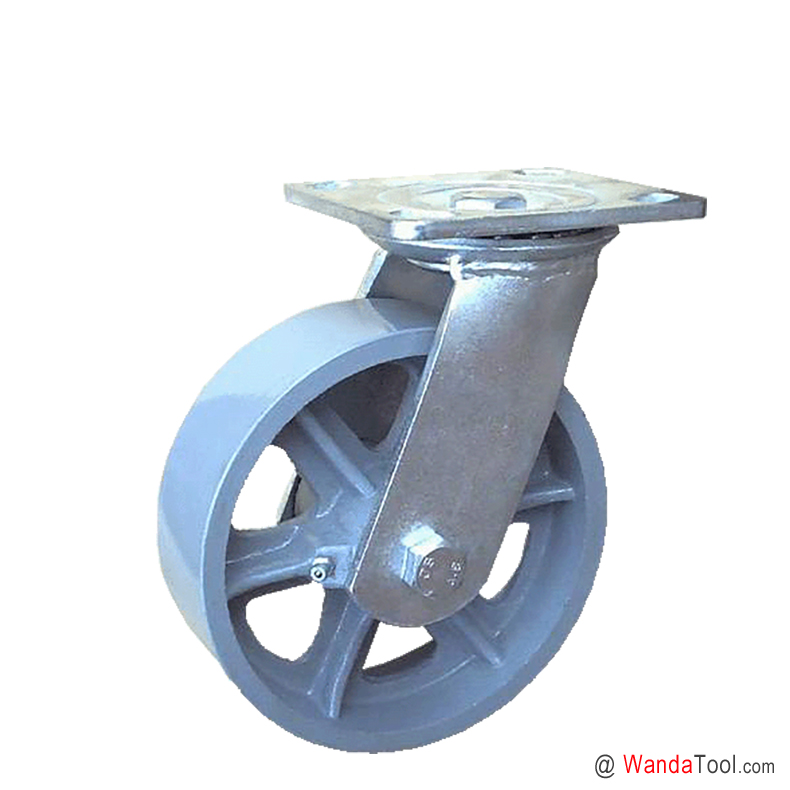

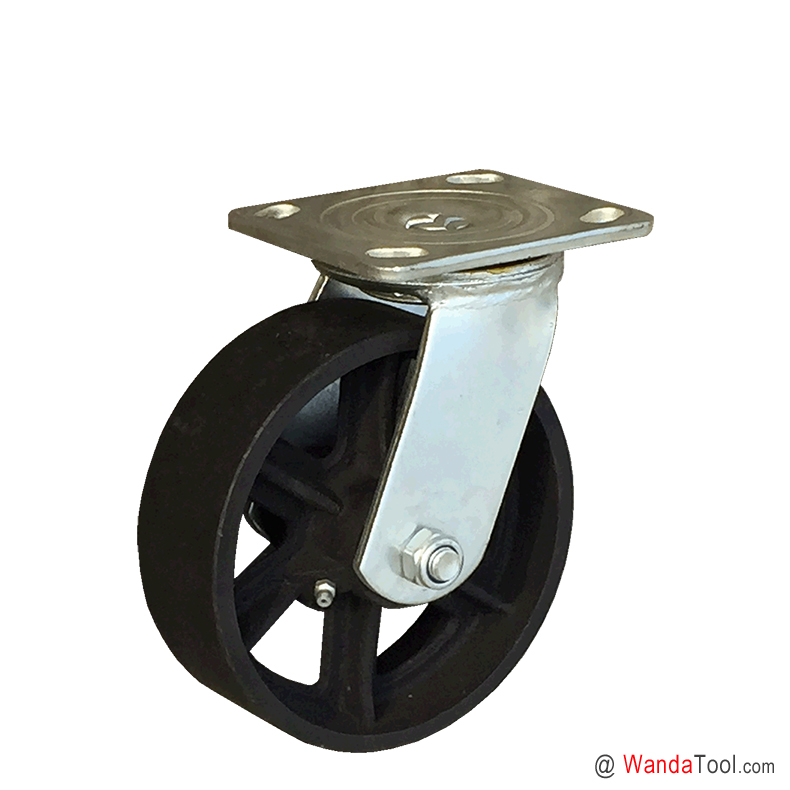

Cast iron caster - 6"×2" Cast iron swivel caster - Medium heavy duty caster - 1100 lbs Capacity | 600PS-150050R-01

Part No.: 600PS-150050R-01
Wheel Dia.: 150 mm / 6 inch caster

Tread Width: 50 mm / 2 inch caster
Wheel Type: Cast iron wheel caster

Caster Type: Swivel caster
Fitting Type: Top plate caster

Load Cap.: 500 kg / 1100 lbs caster
APP: Medium heavy duty caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Cast iron caster - 6"×2" Cast iron swivel caster - Medium heavy duty caster - 1100 lbs Capacity \| 600PS-150050R-01.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	150 mm	6 inch
Width of Tread	50 mm	2 inch
Wheel Material	Cast iron wheel	Cast iron wheel
Hardness of Tread
Wheel Bearing	Roller bearing	Roller bearing
Fastening Type	Top plate caster	Top plate caster
Size of Plate	115×100 mm	4.5×4 inch
Plate Hole Centres	92×75 to 75×67 mm	3.625×3 to 3×2.625 inch
Plate Hole	11 mm	0.43 inch
Swivel Offset	35 mm	1.38 inch
Swivel Radius	110 mm	4.33 inch
Overall Height	190 mm	7.45 inch
Caster Brake	No brake swivel caster	No brake swivel caster
Standard
Load Capacity	500 kg	1100 lbs
Caster Weight
Part No.	600PS-150050R-01	600PS-150050R-01
SKU	6915006020	6915006020

Features

6"×2" Medium heavy duty cast iorn swivel caster | 600PS-150050R-01

6"×2" Cast iron swivel casters have exceptionally long wear life and they are ideal for warehousing, general material handling and manufacturing. In addition, they can be used in temperature extremes. 600PS-150050R-01 Series medium heavy duty casters with cast iron caster wheels are cold formed steel and recommended for medium to medium heavy duty applications.

Featured 6"×2" Medium heavy duty cast iorn swivel caster

Top Plate & Yoke Base: Cold formed from 6mm steel plate. Contact us for Custom Made notched yoke base for factory or installable 4-position swivel lock.
Swivel Section: Smooth formed, double ball bearing raceways swivel head.
Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to yoke base.
Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
Lubrication: Zerk in swivel section and wheel for easy lubrication.
Finish: Zinc plated to resist corrosion.

Custom made 6"×2" Medium heavy duty cast iorn swivel caster

Yoke Base: Notched yoke base for factory or installable 4-position swivel lock available.
Swivel head sealed: Rubber seals available.
Side Washers: Metal step retaining thrust washers available.
Wheel Axle: 12.5 mm hollow axle with grease fitting available.
Finish: Electrophoresis black plated to resist corrosion available.
