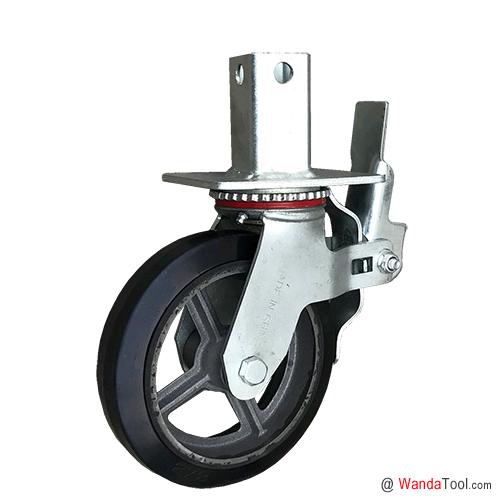

Scaffolding caster - 8 in. Scaffold caster - Square tube scaffold caster with moldon rubber wheel | SCASR-200050R-12

Part No.: SCASR-200050R-12
Wheel Dia.: 200 mm / 8 inch caster

Tread Width: 50 mm / 2 inch caster
Wheel Type: Moldon rubber wheel

Caster Type: Total lock swivel caster
Fitting Type: 50×50mm Square tube caster

Load Cap.: 300 kg / 660 lbs caster
APP: Square tube scaffolding caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Scaffolding caster - 8 in. Scaffold caster - Square tube scaffold caster with moldon rubber wheel \| SCASR-200050R-12.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	200 mm	8 inch
Width of Tread	50 mm	2 inch
Wheel Material	Rubber on cast iorn wheel	Rubber on cast iorn wheel
Hardness of Tread	Shore A 85	Shore A 85
Wheel Bearing	Roller bearing	Roller bearing
Fitting Type	Square tube caster	Square tube caster
Tube Type	50×50 mm	1.97×1.97 inch
Tube Length	90 mm	3.55 inch
Hole Spacing (L1)	76 mm	3 inch
Hole diameter (P1)	14.3 mm	0.56 inch
Hole Spacing (L2)	76 mm	3 inch
Hole diameter (P2)	14.3 mm	0.56 inch
Swivel Offset	53 mm	2.08 inch
Swivel Radius	153 mm	6.02 inch
Overall Height	237 mm	9.33 inch
Caster Brake	Swivel caster with total lock	Swivel caster with total lock
Load Capacity	300 kg	660 lbs
Caster Weight	kg	lbs
Part No.	SCASR-200050R-12	SCASR-200050R-12
SKU	6920001070	6920001070

Features

8×2 inch Square tube scaffold caster with moldon rubber on cast iorn wheel | SCASR-200050R-12

8-inch Moldon rubber on cast iron core scaffold casters with 50×50mm Square tube stem are equipped with total lock brakes. This is a scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCASR-200050R-12 series scaffold caster has the characteristics of scientific design, convenient operation and safe use.

Featured 8 inch Square tube stem scaffold caster with moldon rubber on cast iorn core wheel

Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment. Formed rig is stronger than welded design.
Mounting and Swivel Cross Section: 50×50mm Square tube type scaffolding caster. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.
Swivel head sealed: Polyurethane seal ring keeps out debris.
Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.
Lubrication: Zerk in swivel section and wheel for easy lubrication.
Moldon Rubber on Cast Iron Wheel: This Mold-on cushion rubber treads are vulcanized to cast iron cores. The soft rubber tread affords a cushion effect to the load. These wheels are highly shock-absorbing and provide quiet operation, while dampening vibration
Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
Lubrication: Zerk in swivel section and wheel for easy lubrication.
