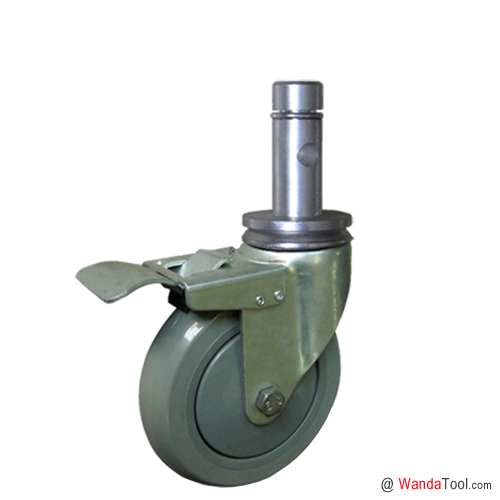

5 inch Scaffold caster - Grip ring swivel locking caster - TPU caster | SCSGA-125032B-93
- Part No.: SCSGA-125050B-93
- Wheel Dia.: 125 mm / 5 inch caster
- Tread Width: 32 mm / 1.25 inch caster
- Wheel Mat.: TPU wheel caster
- Type: Swivel with total lock caster
- Mounting: Grip ring stem caster
- Load Cap.: 120 kg / 265 lbs caster
- APP: Scaffolding caster
Technical Data
| 腳輪產品參數 | °C / mm / kg | °F / inch / lbs |
| 輪子直徑(?D) | 125mm | 5" |
| 輪面寬度(W) | 32mm | 1.25" |
| 輪子材質 | 聚氨酯TPU腳輪 | 聚氨酯TPU腳輪 |
| 輪面硬度 | Shore A 90 | Shore A 90 |
| 輪子軸承 | 滾珠軸承 | 滾珠軸承 |
| 裝配方式 | 卡簧桿式腳輪 | 卡簧桿式腳輪 |
| 卡簧桿桿徑 | 26mm | 1.26"×1.26” |
| 裝配桿長 | 70 mm | 1.024" |
| 孔距高(L1) | 30mm | 1.33%1" |
| 裝配孔徑(?P1) | 12.7mm | 0.5" |
| 孔距高(L2) | - | - |
| 裝配孔徑(?P2) | - | - |
| 旋轉偏心距 | 35mm | 1.378" |
| 旋轉半徑 | 98mm | 3.858" |
| 產品總高 | 155mm | 6.102" |
| 腳輪剎車 | 全剎車腳輪 | 全剎車腳輪 |
| 腳輪載荷 | 120kg | 265lbs |
| 產品重量 | ||
| 產品編號 | SCSGA-125032B-93 | SCSGA-125032B-93 |
| SKU | 6912500790000 | 6912500790000 |
Features
Drawing
Accessories & Versions
Download
Previous product：5 inch Scaffold caster - Grip ring swivel locking caster - TPR caster | SCSGA-125032B-92
Next product：5 inch Scaffold caster - Expanding stem caster - TPU caster | SCSEA-125032B-93
